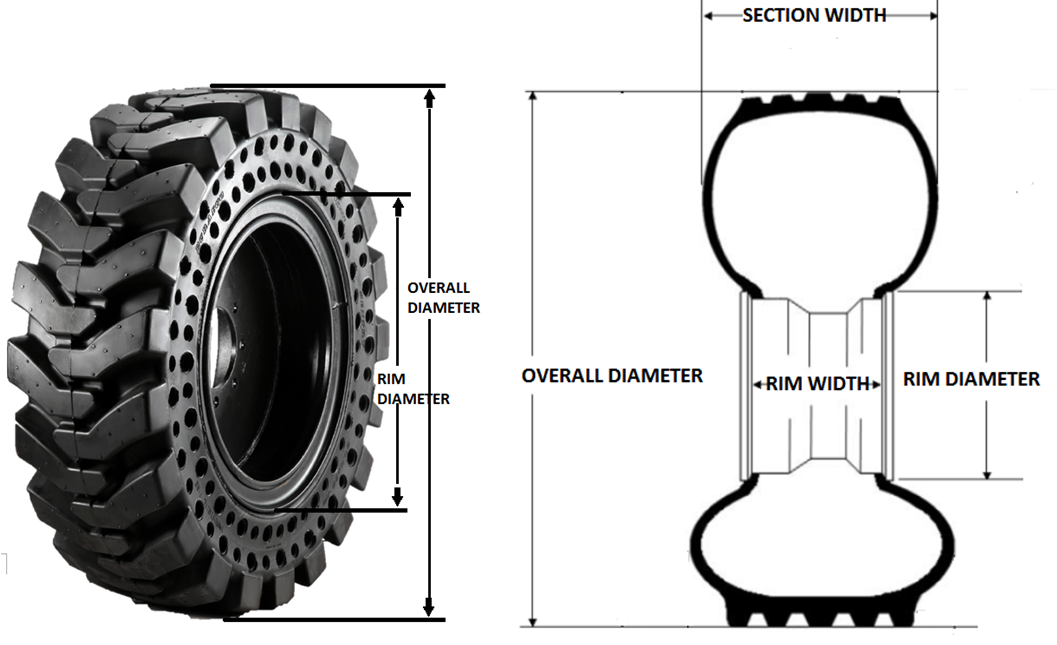

| OVERALL | SECTION | RIM | ||
| DIAMETER | WIDTH | DIAMETER | ||
| INCH | INCH | INCH | ||
| 12 | — | 16.5 | ||
| 10 | — | 16.5 | ||
| 8.25 | — | 15 | ||
| 7.00 | — | 12 | ||
| 23 | X | 8.50 | — | 12 |
| 27 | X | 8.50 | — | 15 |
| 30 | X | 10 | — | 16 |
| 33 | X | 12 | — | 20 |

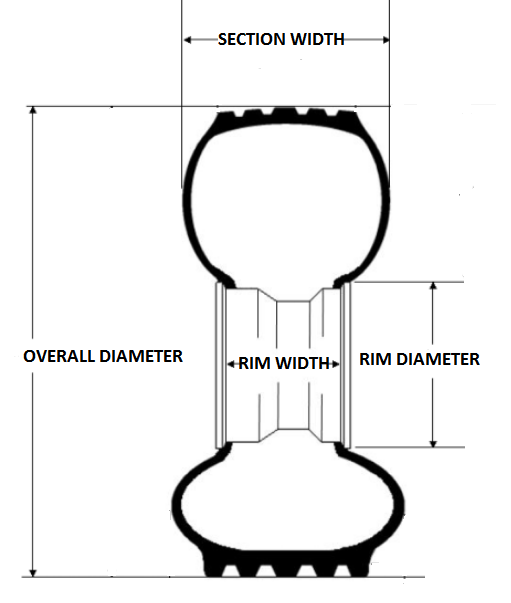

| SECTION | ASPECT | RIM | ||
| WIDTH | RATIO | DIAMETER | ||
| mm | RATIO | INCH | ||
| 385 | ∕ | 65 | — | 20 |
| 445 | ∕ | 65 | — | 24 |

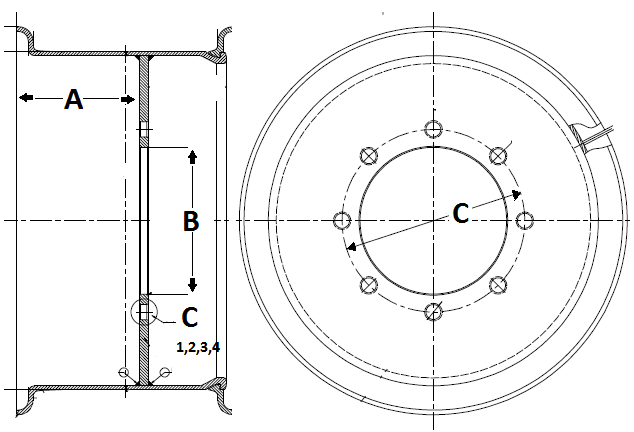

How to measure the wheel rim for selecting the correct tire with rim assemble.
A. Backspacing(Offset) : The distance from the innermost edge of the rim to the the disc’s surface._________mm
B. Pilot Hole Diameter(Central Hole Diameter):________mm
C.
1.Bolthole Circle Diameter:_______mm
2.Number of Bolthole:________
3.Bolthole Diameter:_______mm

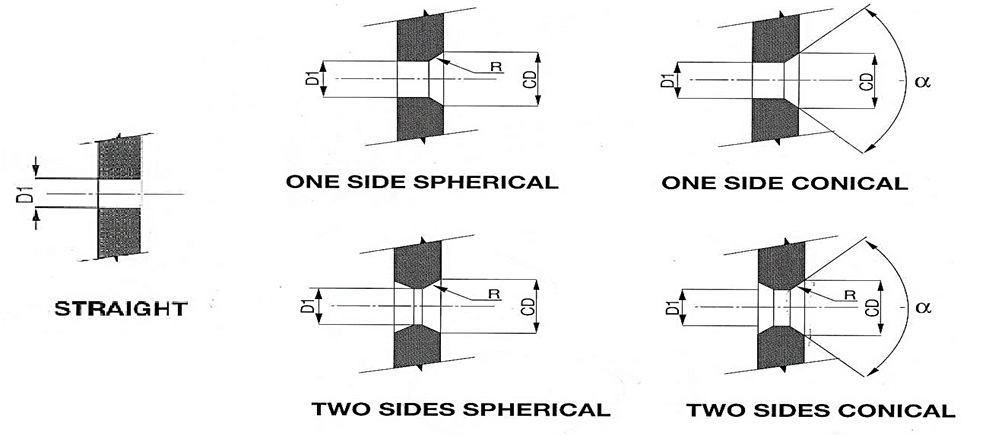

4.Bolthole Chamfer:____________________
( Please refer the 5 drawings attached)
PRODUCT RANGE
POPULAR PRODUCT
Please enter the following galleries to find the suitable tires you want and,if they are not available, please contact our sales or technical department, and we are willing to cater to custom design if necessary.
