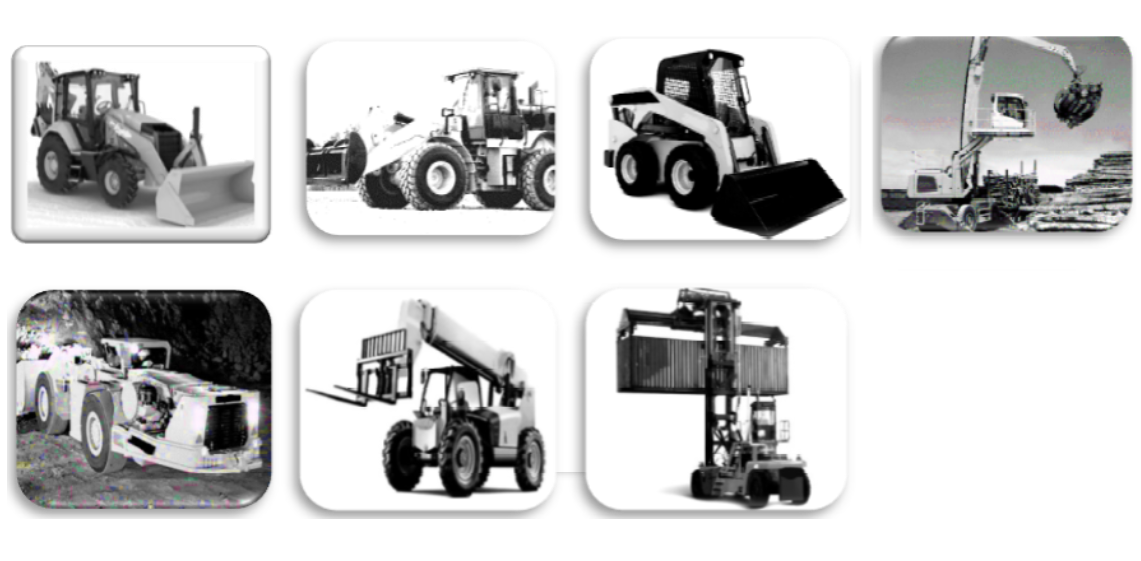

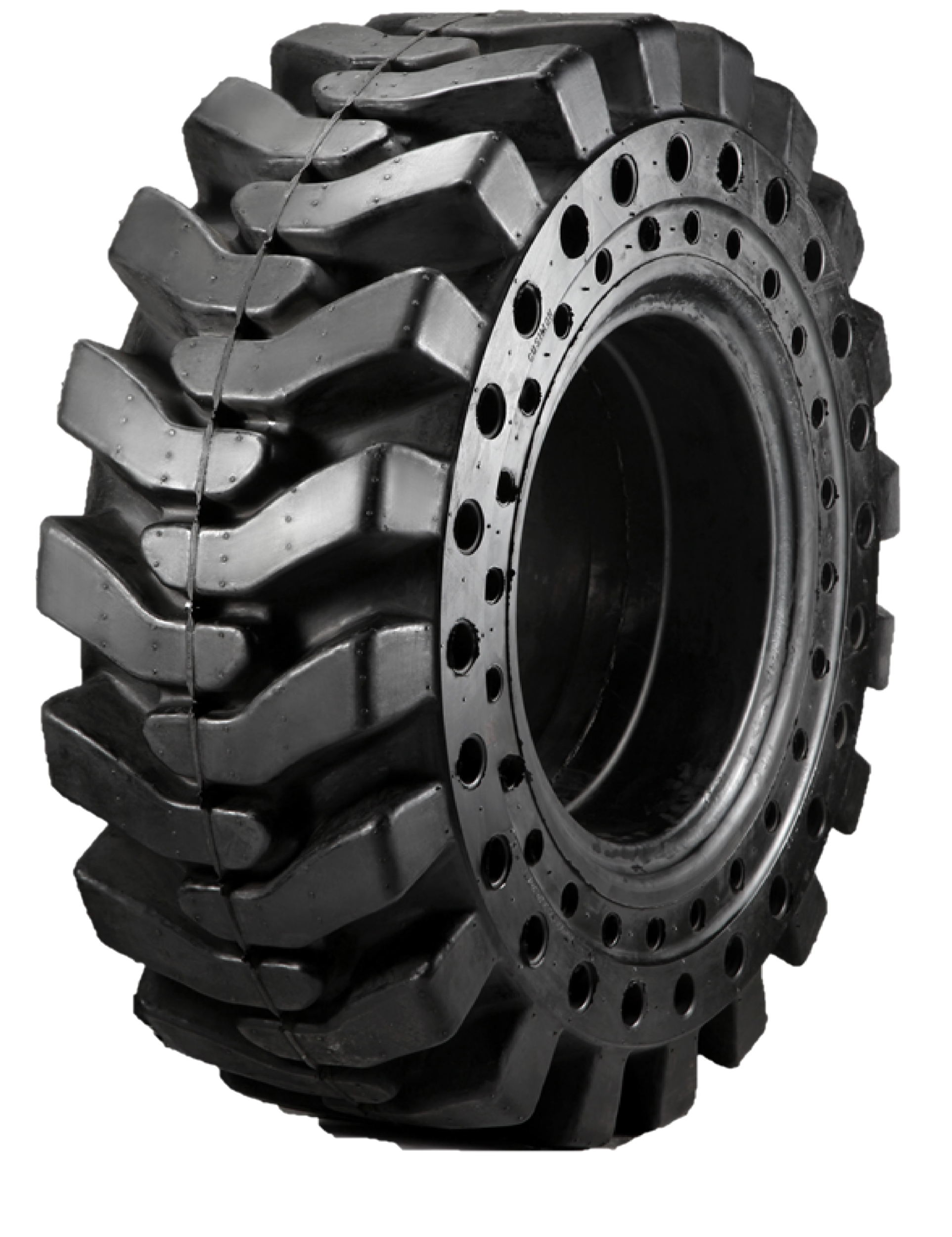

R4(Apertures) tread pattern tires, with the big tractive lugs and wider contact area, are versatile and known as the ATU (All Traction Utility). Featuring the improved rubber compound for greater resistance to cutting and the sidewall apertures designed for heat dissipation and softer ride equivalent to the foam filled pneumatic tire, our R4(A) tires have the ability to absorb considerable punishment from the tough terrain effortlessly and they are perfect suitable for wheel loaders, skid steers, telehandlers, reach stackers, material handlers, backhoe, mining machines and other industrial vehicles.
| TYRE SIZE | RIM SIZE | TREAD PATTERN | TYRE DIMENSION (mm / inch ± 3%) | LOAD CAPACITY( kg ± 3% ) | ||||||
| (inch) | Overall Diameter | Overall Width | Load | Steering | 6 km/h | 10 km/h | 25 km/h | Static | ||
| 12”& 15″ | ||||||||||
| 570-12 | 4.00-12 | R4(A) | 570mm / 22.4″ | 146mm / 5.8″ | 1580 | 1220 | 1580 | 1440 | 1220 | 1840 |
| 23X8.5-12 | 5.00-12 | R4(A) | 580mm / 22.8″ | 190mm / 7.5″ | 2180 | 1690 | 2180 | 1990 | 1690 | 2540 |
| 27X8.5-15 | 5.50-15 | R4(A) | 675mm / 26.6″ | 200mm / 7.9″ | 2970 | 2290 | 2970 | 2700 | 2290 | 3450 |
| 16″ | ||||||||||
| 30X10-16 | 6.00-16 | R4(A) | 767mm / 30.2″ | 240mm / 9.4″ | 4020 | 3110 | 4020 | 3660 | 3110 | 4680 |
| 33X12-16 | 8.00-16 | R4(A) | 820mm / 32.3″ | 275mm / 10.8″ | 4720 | 3640 | 4720 | 4290 | 3640 | 5490 |
| 32.5×15-16 | 11.25-16 | R4(A) | 820mm / 32.3″ | 347mm / 13.7″ | 5450 | 4210 | 5450 | 4960 | 4210 | 6340 |
| 20″ | ||||||||||
| 30X10-20 | 7.00-20 | R4(A) | 767mm / 30.2″ | 240mm / 9.4″ | 4020 | 3110 | 4020 | 3660 | 3360 | 5050 |
| 32X10-20 | 7.00-20 | R4(A) | 820mm / 32.3″ | 250mm / 9.8″ | 4950 | 4140 | 4950 | 4500 | 4140 | 6210 |
| 33X12-20 | 8.00-20 | R4(A) | 830mm / 32.7″ | 285mm / 11.2″ | 5190 | 4340 | 5190 | 4720 | 4340 | 6510 |
| 36.5X12-20 | 8.00-20 | R4(A) | 935mm / 36.8″ | 300mm / 11.8″ | 5600 | 4680 | 5600 | 5090 | 4680 | 7020 |
| 36.5X14-20 | 11.00-20 | R4(A) | 920mm / 36.2″ | 340mm / 13.4″ | 6160 | 5150 | 6160 | 5600 | 5150 | 7720 |
| 38.5X14-20 | 11.00-20 | R4(A) | 970mm / 38.2″ | 340mm / 13.4″ | 7040 | 5880 | 7040 | 6400 | 5880 | 8830 |
| 385/70-20 | 10.00-20 | R4(A) | 1060mm / 41.7″ | 360mm / 14.2″ | 8090 | 6770 | 8090 | 7360 | 6770 | 10150 |
| 445/65-20 | 12.00-20 | R4(A) | 1060mm / 41.7″ | 420mm / 16.5″ | 8440 | 7060 | 8440 | 7680 | 7060 | 10590 |
| 24″ | ||||||||||
| 385/65-24 | 10.00-24 | R4(A) | 1060mm / 41.7″ | 360mm / 14.2″ | 8090 | 6770 | 8090 | 7360 | 6770 | 10150 |
| 445/65-24 | 12.00-24 | R4(A) | 1150mm / 45.3″ | 410mm / 16.1″ | 8250 | 6900 | 8250 | 7500 | 6900 | 10350 |
| 1300-24 | 8.50-24 | R4(A) | 1270mm / 50.0″ | 320mm / 12.6″ | 7640 | 6390 | 7640 | 6950 | 6390 | 9590 |
| 1400-24 | 8.50-24 | R4(A) | 1340mm / 52.8″ | 340mm / 13.4″ | 8480 | 7060 | 8480 | 7680 | 7060 | 10590 |
| 25″ | ||||||||||
| 15.5-25 | 11.25-25 | R4(A) | 1270mm / 50.0″ | 390mm / 15.4″ | 9020 | 7540 | 9020 | 8200 | 7540 | 11310 |
| 17.5-25 | 14.00-25 | R4(A) | 1340mm / 52.8″ | 440mm / 17.3″ | 9680 | 8100 | 9680 | 8800 | 8100 | 12080 |
| 23.5-25 | 19.5-25 | R4(A) | 1620mm / 63.8″ | 580mm / 22.8″ | 12100 | 10100 | 12100 | 11000 | 10100 | 15180 |
| 26.5-25 | 22.00-25 | R4(A) | 1750mm / 68.9″ | 670mm / 26.4″ | 18150 | 15180 | 18150 | 16500 | 15180 | 22770 |
REMARKS:
- The load capacities are based on a maximum distance of 10 km within one hour and are valid for intermittent service only. The speeds quoted are the maximum of the un-loaded vehicle and the increase in load capacity for lower speeds is not permitted. Please contact sales or technical department for detail information.
- For longer distance, higher speed and bigger load in special conditions, please contact sales or technical department for detail information.
